Barrel Spacers: Custom

To make a purchase, choose the center to center distance you want between the U’s & then “add to your cart.”   Keep adding until you have everything you need and then check out.   It will take at least one business day per item to print it.   We’ll ship your entire order when it is complete.

We created these when someone who was building a custom cabinet wanted to use our rests, but wanted more space between each gun (there is only 2.5″ between the centers of the standard STACK-ON rest).   These have more space between U’s so that you can get guns in and out without as much rubbing.  They also have at least two additional holes for placing screws through the front (to affix them to a wood cabinet, or wall where their is no access from behind)

These are useful for replacing foam barrel rests that some cabinets came with, or for putting barrel rests below the default locations set up by STACK-ON.

Wall mountable:  via screws through front face into backer, or can be mounted to sheet metal of gun cabinet (by using short screws that come with the rest) like in STACK-ON gun cabinets.  Using them below the standard rests allows SBR’s, SBS, extending/folding stock, and youth model long arms to rest properly inside the cabinet.

If the firearm needs to stand off of the wall further (to accommodate sights/scope),  combine with a STACK-ON style Scope Stand Off. (CLICK HERE TO SEE THE STAND OFF THIS IS COMPATIBLE WITH)

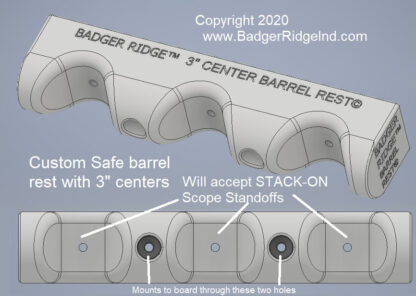

3U-3″ center is ~9 inches long (226.6mm)

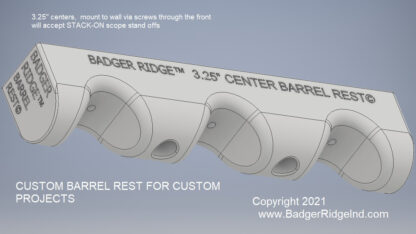

3U-3.25″center is ~9 11/16 inches long (245.7mm)

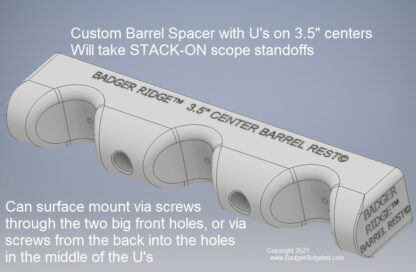

3U-3.5″ center is ~10 7/16 inches long (264.7mm)

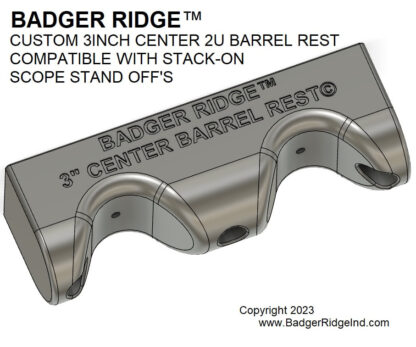

2U-3″ center is ~5 15/16 inches long  (148mm)

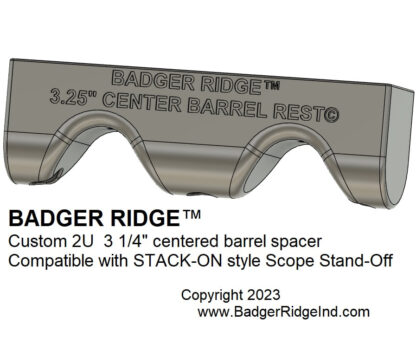

2U-3.25″ center is ~6.5 inches long (165mm)
2U-3.5″ center is ~7inches long  (177.8mm)

Please review the installation instructions to have confidence in your purchase

​PLEASE REMEMBER:  It will take at least one business day per item to print.   We’ll ship your entire order when it is complete.
​
To simplify production we will only make these in grey:  as we originally printed in black and have a few hanging around you may get a black one.  I’d bet your firearms won’t mind what color they lean against.

While these are not necessarily made for STACK-ON cabinets, they will work in them and many other applications where one wants barrel rests.   They are designed to be affixed with screws through the metal and into the rest, or from the front and into a backer, but have reports from clients who have successfully used stick on magnet strips, and double sided tape to put them in many other places.
