VersaMax Cam Pin & Trigger Pack (VersaMax common wear parts – ‘Remelli’ parts kit)

$40.00$130.00

Benelli Replacement Parts Kit for the Remington VersaMax

Description

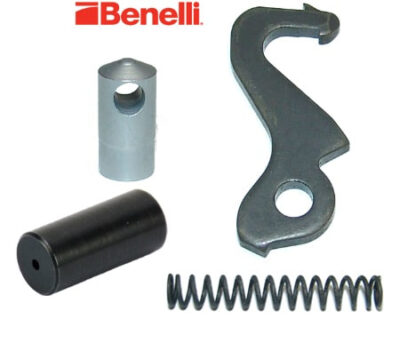

Benelli Hammer, Hammer Spring, Hammer Plunger, and Cam Pin

Fix your VersaMax by upgrading these common failure parts with Benelli parts

Our “Remelli” Parts Kit for Remington VersaMax shot guns contains:

– Replacement Benelli Cam pin
– Replacement Benelli Hammer
– Replacement Benelli Hammer Spring
– Replacement Benelli Hammer Spring Plunger/Cap

If you want to DIY just select and purchase the “Remelli Parts Kit” (we’ll ship you the parts…   hammer spring is on back order… we have the other 3 parts, will ship them and when we get the springs in we’ll ship the spring separate)

If you want us to put the parts into your shotgun’s trigger assembly: just select the “I’ll pull my trigger pack and send for upgrade ” , then add to cart.   Once you complete check out,  remove your VersaMax’s trigger pack and send just the trigger pack to us (we’ll hold on to the parts you purchased, await your trigger pack’s arrival, swap the parts, & then return the trigger pack to you with all the extra parts).  But until I get the hammer springs back in stock, I’ll have to reuse the original hammer spring and send the replacement to you whenever I get them in stock.

Remember replacing these 4 parts is typically only part of the fix:  cleaning & lubing the recoil spring & plunger are also common causes of light strikes.   After adding the Remelli kit to your cart, you might want to buy a new recoil spring, and a D clip.


More details about why these parts are needed and how our trigger pack upgrade service works

The Remington VersaMax is at it’s heart, a USA made clone of the Benelli M4, with a wing-shooting stock, an improved gas system, and other changes.   Some (but not all) of the VersaMax’s parts are interchangeable with multiple Benelli parts.   Unfortunately some of the key Remington original parts don’t seem to last and can cause malfunctions.   Typically the first sort of malfunction to pop-up is a Failure to Fire (light primer strikes).

The Benelli parts we sell are direct, higher quality replacements for the 4 pieces that (individually or together) fail first to cause light primer strikes (aka Failure to Fire) in the VersaMax.  Whether a VersaMax has all 4 bad at the moment or not, it is recommended to upgrade all 4 to Benelli parts while you are in there inspecting and cleaning.   It is the best way to ensure reliability  (ie if you think your hammer is ok, just replace it now, before it isn’t and costs you).  You can try just replacing these 4 before moving on to the recoil/action spring, or replacing the recoil/action spring as well.

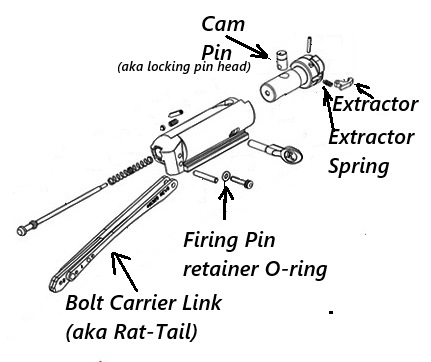

Damaged original Remington Cam Pin on left, new on right (still better to replace with a real Benelli Cam Pin)
Remember to inspect your bolt and bolt carrier for burs and remove/polish any surfaces that are marred or have burs!
VersaMax Bolt with scar from burr in bolt carrier cam pin slot
VersaMax Bolt with scar from burr in bolt carrier cam pin slot
File knocking burr of edge of cam pin slot in VersaMax bolt carrier
File knocking burr of edge of cam pin slot in VersaMax bolt carrier

The Repair Service is simple:

1:  Select “I’ll Pull & Send My Trigger Pack for upgrade ”

2: click “add to your cart”
(if you already bought the parts, and just need our help you can choose that option too)
-Once you have all the items you want to purchase from us (you may want to buy a recoil spring or extra D clips), then complete the check out by clicking on your cart.
-Pull the Trigger Assembly from your VersaMax, pad it well, & ship it to us  (if we see you purchased the installation service we’ll hold any parts and other items you purchased and will ship them with your upgraded trigger pack).   Give us 4-8 weeks to turn your trigger pack around.

What you are buying with our Repair Service: We’ll pull the hammer/plunger/spring clean and replace them with new Benelli manufactured M4 parts (and throw the old parts in the recycling bin… unless you put a note in telling us you want them back).

The New Cam Pin (and anything else you purchase like an action spring) will be shipped to you with the upgraded trigger pack (the cam pin is replaced just by pulling the bolt apart with the procedures in the owner’s manual).

​Again, if you want your old parts back, let us know with a note accompanying the trigger pack (or they’ll just end up in my recycling bin).  Expect 4-8 weeks turn around (from when your item hits my hands until it’s complete and back in the mail).


​I’ve personally seen two VersaMax’s with light primer strikes at the same time on the same waterfowl hunt, because they had bad hammers, springs, plungers, and cam pins.   Both guns had over 500 shells through them… one was close to 1500 shells, the other about half that.  The “Remelli Kit” plus a good cleaning and lubing of the action spring, plunger, and tube was the fix.

Remember a little light grease (when its hot out) or a lot of high quality oil (for hunting situations) is required on the cam pin to prevent galling & deformation (even on the higher quality Benelli pin we sell here).   And on top of cleaning and lubing the trigger pack, you should remove, clean, and lightly lube the action spring very often to prevent it from gumming up in the cold.

Feel free to read more about this here on our blog:  Versa-Max light primer strikes and the fix

Additional information

Choose DIY or Badger Installation

Just send me a Remelli Kit, I'll pull & send my trigger pack for upgrade, I have the parts, just need labor
